Conqueror

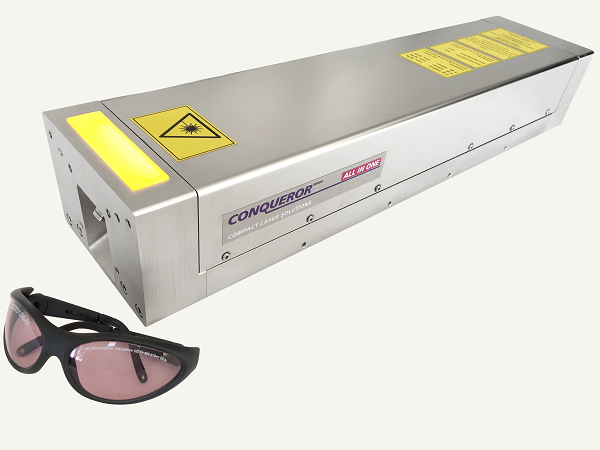

ConquerorAll-in-one

30 W 1064 nm, 25 W 532 nm, 15 W 355 nm

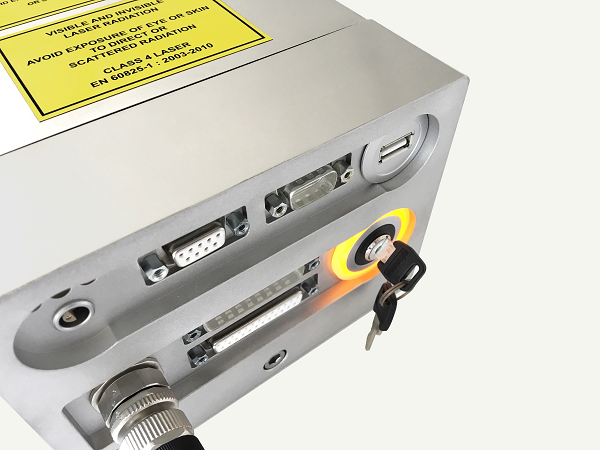

ConquerorConqueror Rückseite

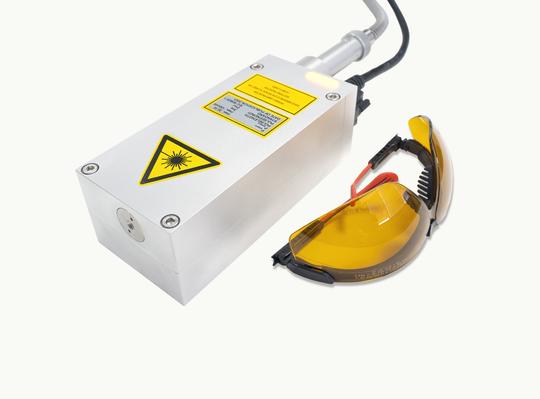

ConquerorCore

30 W 1064 nm, 14 W 532 nm, 12 W 355 nm

Conqueror Core

High-power, q-switch OEM-laser sources for material machining and marking

You have the choice: CONQUEROR ALL-IN-ONE or CONQUEROR CORE

CONQUEROR ALL-IN-ONE: All components included in one unit

Pro: Reliable, service-friendly plug and play operation

Product features

  • High-power 30 W @ 1064 nm, 25 W @ 532 nm, 15 W @ 355 nm (50 kHz)
  • 355nm: external frequency conversion for a time-symmetric laser pulse < 10ns
  • High single pulse energy: >450µJ at 355 nm
  • Significant single pulse peak power: up to 100 kW
  • Arbitrary repetition rate: 1 Hz to 500 kHz
  • Multiple Pulse Control (MPS) function
  • Air-cooling, water-cooling also available for e.g. clean-room processing
  • Expectable 100,000 hour life-time for the one diode-pump module
  • Also available as complete marking system with software package
  • Made in Berlin, Germany

CONQUEROR CORE: Miniature laser head with a weight below 3 kg: 30 W @ 1064 nm, 14 W @ 532 nm, 12 W @ 355 nm (50 kHz). For 532 nm and 355 nm: external frequency conversion for a time-symmetric laser pulse < 10 ns

Pro: Maximum integration capability
