Monolith

MonolithCore

16 W 1064 nm, 12 W  532 nm, 6 W 355 nm

Monolith

MonolithAll-in-one

16 W 1064 nm, 12 W  532 nm, 6 W 355 nm

Monolith All-in-one

Ultra-compact Q-switch OEM-laser sources for material machining and marking applications

You have the choice: MONOLITH CORE or MONOLITH ALL-IN-ONE

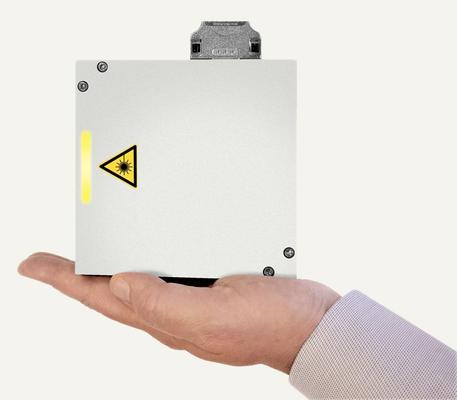

MONOLITH CORE: Miniature laser head of only 122 x 122 x 122 mm³ (incl. cooling-unit) with a weight < 3 kg. Can be combined with an ultra-small, palm fitting controller of only 150 x 150 x 115 mm³ (incl. cooling unit)

Pro: Maximum integration capability

Product features

  • Average power: 16 W for 1064 nm, 12 W for 532 nm, 6 W for 355 nm at 40 kHz
  • Short laser pulse width: 4 to 10 ns
  • High single pulse energy: e.g. 500 µJ at 355 nm and 6 kHz
  • Significant single pulse peak power: up to 100 kW
  • Arbitrary repetition rate: 1 Hz to 500 kHz
  • Multiple Pulse Control (MPS) function
  • Expectable 100,000 hour life-time for the one diode-pump module
  • Air-cooling, water-cooling also available for e.g. clean-room processing
  • Also available as complete marking system with software package
  • Made in Berlin, Germany

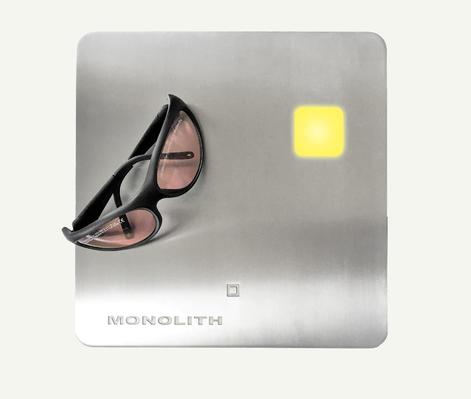

MONOLITH ALL-IN-ONE: All components integrated into one unit of ca. 258 x 258 x 115 mm³ (incl. cooling-unit)

Pro: Reliable, service-friendly plug and play operation

Monolith Product Info
